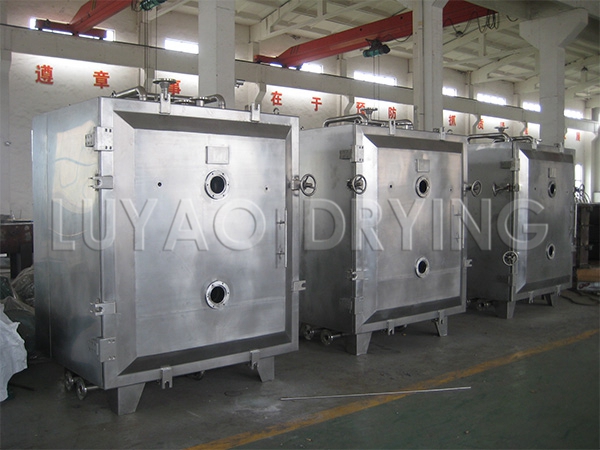

FZG square static vacuum dryer
Detailed Description
Working principle The
??
so-called vacuum drying is drying and heating the material under
vacuum conditions. If vacuum pumping is used for dehumidification, the
drying speed is accelerated.
??
Note: If using a condenser. The solvent in the material can be recovered
through the condenser. If the solvent is water, the condenser can be
used without saving energy investment.
Performance characteristics
◎ material solution under vacuum boiling point lower. Increases the
heat transfer driving force of the evaporator. Therefore, the heat
transfer area of the evaporator can be saved for a certain amount of
heat transfer.
◎ The heat source for evaporation operation can be low-pressure steam or waste heat steam.
◎ The evaporator has little heat loss.
◎ It can be disinfected before drying. No impurities are contaminated in the drying process. It meets GMP requirements.
◎ belongs to static vacuum dryer. Therefore, the shape of the dried material will not be damaged.
The adapted materials are
??
suitable for low-temperature drying of heat-sensitive materials that
are easily decomposed, polymerized, and degraded at high temperatures;
they are widely used in the pharmaceutical, chemical, food, and
electronics industries.
Technical specifications
| Name/Specifications | FZG-10 | FZG-15 | FZG-20 |
| Drying box size | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
| Drying box outside size | 1513×1924×1720 | 1513×1924×2060 | 1513×1924×2500 |

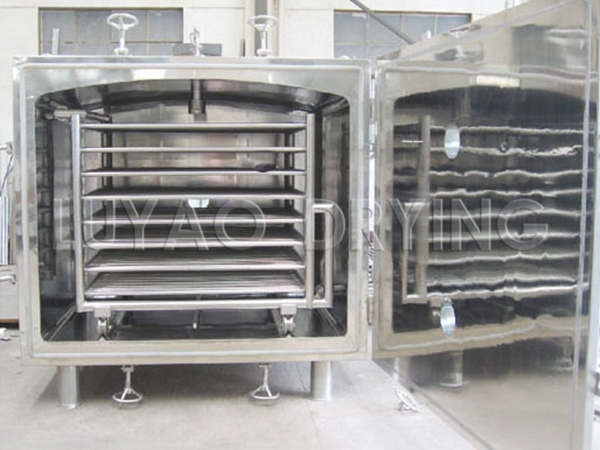

| Bake layer number | 5 | 8 | 12 |
| Distance between layers | 122 | 122 | 122 |
| Drying tray size | 460×640×45 | 460×640×45 | 460×640×45 |
| Number of baking plates | 20 | 32 | 48 |
| Drying tube pressure | ≤0.784 | ≤0.784 | ≤0.784 |
| Bake rack use temperature | 35-150 | 35-150 | 35-150 |
| Empty vacuum in the box | -0.09 to 0.096 | ||
| Gasification rate of water at -0.1MPa and heating temperature 110 o C | 7.2 | 7.2 | 7.2 |
| When using a condenser, vacuum pump model, power | 2X-70A / 5.5KW | 2X-70A / 5.5KW | 2X-90A / 2KW |
| Without the condenser, vacuum pump model, power | SK-3 / 5.5KW | SK-6 / 11KW | SK-6 / 11KW |
| Drying box weight | 1400 | 2100 | 3200 |
Note: The water ring vacuum pump is used in conjunction with supercharging to increase the vacuum.
Ordering Information
◎ When ordering, please select an appropriate vacuum dryer according
to the factors such as the final moisture content of the dried material,
the final moisture content of the moisture content, and the vacuum
drying time. The same type of vacuum drying machine there
are four kinds of the electrically heated vapor hot thermal oil
heating. For example, in order to increase the amount of drying can be
appropriate to increase the number of drying rack please promptly to our
factory.
◎ The accessories in the vacuum drying system mentioned in the user's
manual can be provided and installed for users. Please specify when
ordering.
◎The company can provide design, manufacture and installation of
special requirements in the vacuum drying system proposed by users.
◎The company's equipment implements quality assurance for users. All
accessories, long-term provide, please rest assured users.
