Product

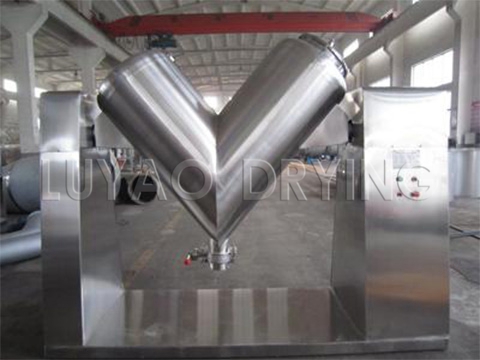

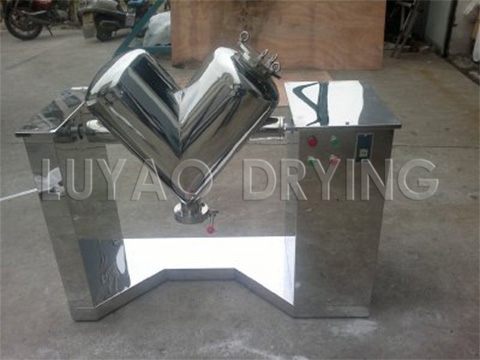

V-shaped mixer
Profile：ZKH(V) series mixer has unique mixing tube structure, high mixing efficiency, no dead angle, cylinder made of stainless steel material, inner and outer wall polishing, beautiful appearance, even mixing and wide application. This machine is used for the mixing of dry material granules in the pharmaceutical, chemical, food, metallurgical and other industries.
Detailed Description
Performance Features
??
Mixing cylinder structure unique, high mixing efficiency, no dead
ends, cylinder made of stainless steel, polished inner and outer walls,
beautiful appearance, mixed evenly, widely used.
Adaptable Materials
??
The machine is used for the mixing of dry material particles in the
pharmaceutical, chemical, food, metallurgical and other industries.
Technical specifications
| Specifications\Project | Total volume L | Work volume L | Feeding amount kg | Feed speed rpm | Power kw | Weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1,000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1,000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
