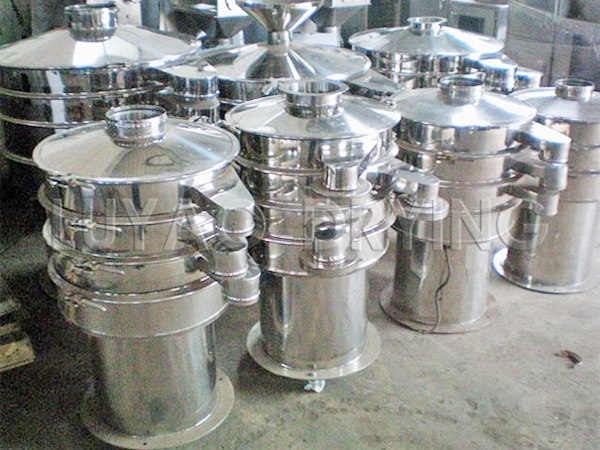

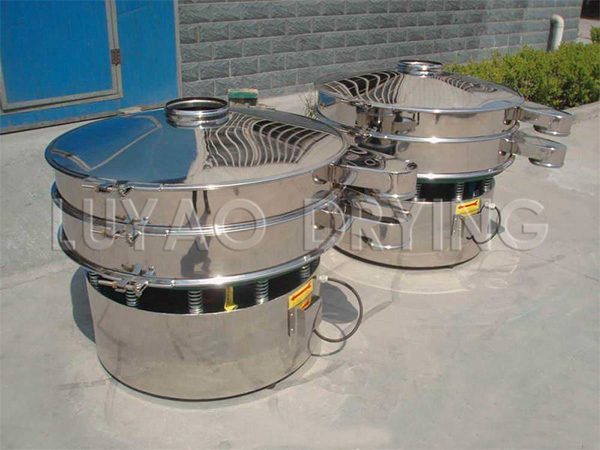

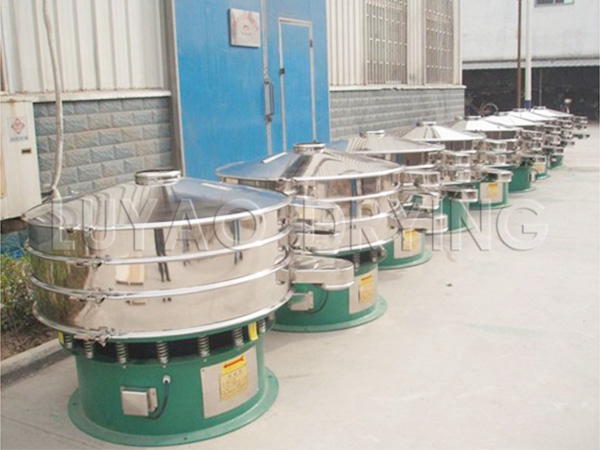

ZS Series Circular Oscillating Screen

Profile:ZS series circular oscillation screen consists of hopper, shaking chamber, coupling, motor. The oscillating chamber is composed of eccentrics, rubber software, spindles, and bearings. The adjustable eccentric weight is driven by the motor and transmitted to the centerline of the spindle. In the unbalanced state, the centrifugal force is generated, so that the strength of the material is changed and the orbital vortex is formed in the screen. The amplitude of the hammer adjuster can be adjusted according to different materials and screens.

Detailed Description

Overview
     This machine consists of a hopper, an oscillation chamber, a coupling, and a motor. The oscillating chamber is composed of eccentrics, rubber software, spindles, and bearings. The adjustable eccentric weight is driven by the motor and transmitted to the centerline of the spindle. In the unbalanced state, the centrifugal force is generated, so that the strength of the material is changed and the orbital vortex is formed in the screen. The amplitude of the hammer adjuster can be adjusted according to different materials and screens. The whole structure is compact, small in size, non-dusting, low noise, high quality, low energy consumption, and convenient mobile maintenance.


   Technical specifications

modelZS-350ZS-515ZS-650ZS-800ZS-1000ZS-1500
Production capacity (kg/h)40-50060-60080-800150-1200300-2000350-2800
Mesh number12-120012-20012-20012-2005-3255-325
Motor power (kw)0.550.550.550.751.52.2
Spindle speed (rpm)138013701370150015001500
Overall size (mm)540×540×1060710×710×1290880×880×13501000×1000×10001100×1100×12001600×1600×1200
Net weight (kg)100180250300350400
